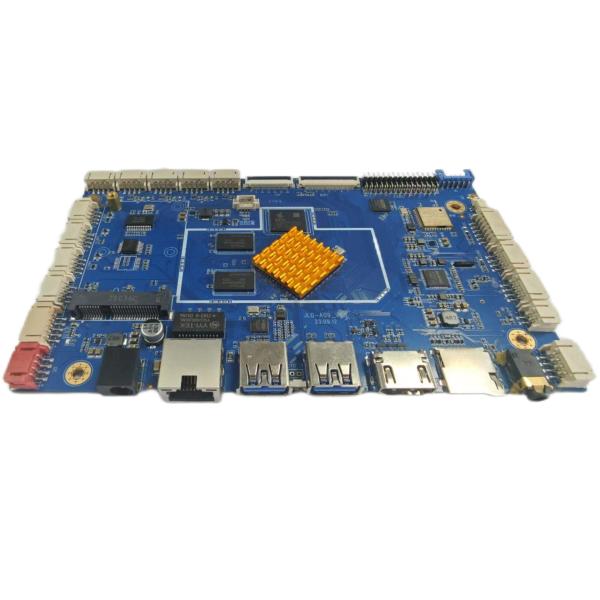

Display Control Board ARM G52 2EE I2C And USB Interface Touch
Screen Embedded Motherboard
Description of JLD-A09 Android Motherboard
This motherboard is equipped with ARM G52 2EE GPU, supporting
OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, which makes it
perform well in graphics processing. Whether it's the colorful
advertising visuals or the delicate and realistic image details,
they can all be perfectly presented. In the advertising machines in
shopping malls, the RK3568 motherboard can clearly display
exquisite product images and vivid promotional videos, attracting
customers' attention and stimulating their desire to purchase. At
the same time, it also supports multiple display interfaces, such
as LVDS (dual 81920 * 1080), EDP,MIPI,HDMI, Capable of adapting to
different types and sizes of display screens, meeting the design
requirements of various advertising machines.
Features of JLD-A09 Android Motherboard
- Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel
- Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS,
Mini PCIE interface, etc.
- Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for
option, BT
- Strong anti-electromagnetic interference and Electromagnetic
compatibility
- Compatible for major mainstream manufacturers' POS application
software, stable performance
Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
| Processor | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency
2.0GHz |
|---|
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
|---|
| NPU | 1TOPS |
|---|
| Memory | 2G/4G/8G DDR4 optional |
|---|
| EMMC | 16G-128G optional |
|---|
| Display | Support LVDS,EDP,MIPI,HDMI |
|---|
| Audio Output | Stereo, support Dolby sound effect |
|---|
| Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker
interface |
|---|
| Ethernet | 10/100/1000M |
|---|
| Wi-Fi | 2.4G/5G WiFi BT |
|---|
| OS | Android 11/ Ubuntu 20.04/Debian 10 |
|---|
| TP | I2C /USB interface TP |
|---|
| Memory card type | TF-CARD |
|---|
| USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1
pce) OTG (1 pce) |
|---|
| Serial port | 7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs),
RS485(0-2 pcs) |
|---|
| RTC | Support power-off clock memory, automatic power on and off |
|---|
| Camera | USB camera |
|---|
| PCB Size | 146mm*102mm*1.6mm |
|---|
| Power supply | DC12V-24V input |
|---|
| Temperature | -20°- 80℃ |
|---|
Application of JLD-A09 Android Motherboard
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
