Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard

Product Categories

Shenzhen JLD Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard

Ask Lasest Price
Brand Name :	JEWELLED
Model Number :	JLD-P06
Price :	$40-$60
Payment Terms :	T/T
Supply Ability :	100K/month
Delivery Time :	3-5 working days for sample

Add to Cart

Product Details
Company Profile

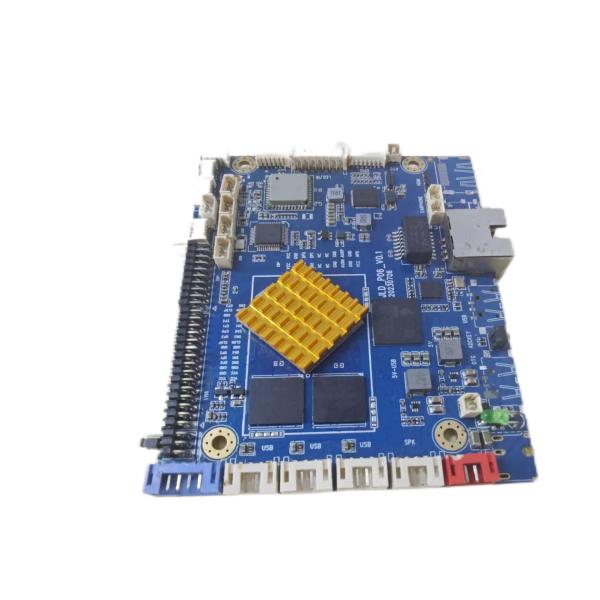

Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard

This is a motherboard designed for commercial POS machines and touch screen POS devices, featuring a Rackchip3288 RK quad core ARM CORTEX-A17 processor and ARM MAIL-T764 graphics processing unit (GPU), integrated with high-definition video engine and advanced security technology. The highest frequency is 1.8GHz. High performance MAIL-T764 GPU, supporting TE, ASTC, AFBC memory compression technology, compatible with major mainstream brand game 3D UI, etc.Embedded high-performance 2D/3D acceleration hardware, supports 4K and H.265 hard decoding with a color depth of 10 bits, and supports up to 3840X2160 resolution display. It has strong web compatibility, compatible with the vast majority of portal websites, audio and video websites, as well as complete APK compatibility and openness.

Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard

Key Features

Product Name: POS Motherboard
PCB Size: 100mm × 80mm
Memory: 2G/4G LPDDR3 Option
Power supply: DC12V3A Input
Wi-Fi: 2.4G/5G WiFi BT
TP: I2C /USB Interface TP

Applications

The motherboard is equipped with the RK3288 quad core Cortex-A17 processor, with a maximum frequency of 1.8GHz, which can efficiently process multiple tasks such as transaction accounting and product recognition. The Mali-T764 GPU supports multiple graphics protocols and AFBC technology, coupled with 1080P high-definition display output, making the POS machine's guest display screen and self-service machine operation interface smooth and clear with dual screen abnormal display, and the touch response is as fast as 0.5 seconds. At the same time, the low-power feature adapts to the 7 * 24-hour uninterrupted operation requirements of the equipment, and ensures stability through high and low temperature testing.
POS machine scenario: widely used in supermarkets, restaurants, etc. This motherboard connects external devices such as cash boxes, barcode scanners, and invoice printers through rich USB and RS232 interfaces, supporting card swiping, scanning, and other aggregated payments. The dual screen display function can synchronously present product lists and marketing information, improving transaction efficiency.
Self service payment machine scenario: In the devices installed in supermarkets in Shenzhen, Wuhan and other places, the motherboard drives barcode scanning, RFID recognition and weighing comparison modules to achieve accurate product accounting. Combined with facial recognition payment to complete the entire self-service process, labor costs are significantly reduced. Supports multiple network modes such as WiFi and 4G to ensure real-time transmission of transaction data.

Product Images

ROCKCHIP RK3288 POS Board technical drawing

ROCKCHIP RK3288 POS Board dimensional drawing

Customer review of ROCKCHIP RK3288 POS Board

Frequently Asked Questions

Q: What is the brand name of the POS Motherboard product?

A: The brand name is JEWELLED.

Q: What is the model number of the POS Motherboard product?

A: The model number is JLD-P06.

Q: Where is the POS Motherboard product manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for the POS Motherboard product?

A: The minimum order quantity is 1pc.

Q: What are the payment terms for purchasing the POS Motherboard product?

A: The payment terms are T/T.
